1. Chemical Framework and Molecular System
1.1 Synthesis and Molecular Style

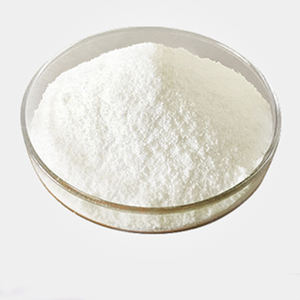

(Naphthalene Sulfonate Superplasticizer)
Naphthalene sulfonate formaldehyde condensate (NSF), commonly referred to as naphthalene sulfonate superplasticizer, is an artificial water-reducing admixture commonly used in high-performance concrete to improve flowability without endangering structural integrity.
It is created via a multi-step chemical process entailing the sulfonation of naphthalene with concentrated sulfuric acid to develop naphthalene sulfonic acid, adhered to by formaldehyde condensation under regulated temperature level and pH conditions to produce a polymer with repeating fragrant devices connected by methylene bridges.
The resulting particle features a hydrophobic naphthalene foundation and several hydrophilic sulfonate (-SO THREE ⁻) groups, developing a comb-like polyelectrolyte structure that makes it possible for solid communication with cement particles in liquid atmospheres.
This amphiphilic style is main to its dispersing feature, allowing the polymer to adsorb onto the surface of cement hydrates and impart electrostatic repulsion in between particles.
The level of sulfonation and polymerization can be readjusted during synthesis to tailor the molecular weight and charge density, directly influencing diffusion effectiveness and compatibility with various concrete kinds.
1.2 Dispersion Device in Cementitious Solutions
When added to fresh concrete, NSF features mostly with electrostatic repulsion, a device distinctive from steric barrier used by newer polycarboxylate-based superplasticizers.
Upon blending, the hydrophobic naphthalene rings adsorb onto the positively billed sites of tricalcium silicate (C FIVE S) and various other cement phases, while the negatively billed sulfonate teams extend right into the pore remedy, producing a solid unfavorable surface area potential.
This creates an electrical dual layer around each cement bit, creating them to push back one another and neutralizing the natural tendency of great particles to flocculate due to van der Waals pressures.
Because of this, the entrapped water within flocs is launched, raising the fluidity of the mix and allowing substantial reductions in water material– commonly 15– 25%– while keeping workability.
This enhanced diffusion brings about an extra uniform microstructure, lowered porosity, and improved mechanical toughness development in time.
Nevertheless, the effectiveness of NSF diminishes with long term mixing or high temperatures as a result of desorption and depression loss, a restriction that influences its application in long-haul transport or warm environments.
( Naphthalene Sulfonate Superplasticizer)
2. Performance Characteristics and Design Benefits
2.1 Workability and Circulation Enhancement
One of one of the most instant advantages of naphthalene sulfonate superplasticizer is its capacity to considerably raise the slump of concrete, making it very flowable and easy to location, pump, and consolidate, especially in largely enhanced structures.
This enhanced workability enables the building of intricate architectural kinds and minimizes the requirement for mechanical resonance, decreasing labor costs and the danger of honeycombing or voids.
NSF is especially reliable in producing self-consolidating concrete (SCC) when made use of in combination with viscosity-modifying agents and various other admixtures, making certain total mold and mildew filling up without partition.
The extent of fluidness gain depends upon dose, commonly ranging from 0.5% to 2.0% by weight of concrete, beyond which decreasing returns or perhaps retardation may take place.
Unlike some natural plasticizers, NSF does not introduce extreme air entrainment, protecting the density and durability of the final product.
2.2 Strength and Resilience Improvements
By enabling lower water-to-cement (w/c) proportions, NSF plays a crucial duty in enhancing both early and lasting compressive and flexural strength of concrete.
A reduced w/c proportion reduces capillary porosity, causing a denser, less absorptive matrix that withstands the access of chlorides, sulfates, and moisture– key consider stopping reinforcement corrosion and sulfate strike.
This improved impermeability prolongs life span in hostile atmospheres such as aquatic structures, bridges, and wastewater treatment facilities.
Additionally, the consistent dispersion of cement particles advertises more complete hydration, speeding up toughness gain and minimizing shrinkage breaking risks.
Researches have actually revealed that concrete incorporating NSF can attain 20– 40% greater compressive stamina at 28 days compared to regulate blends, depending upon mix layout and curing problems.
3. Compatibility and Application Considerations
3.1 Communication with Concrete and Supplementary Products
The performance of naphthalene sulfonate superplasticizer can differ dramatically depending on the structure of the concrete, especially the C THREE A (tricalcium aluminate) content and alkali degrees.
Concretes with high C TWO An often tend to adsorb more NSF as a result of stronger electrostatic interactions, possibly requiring higher does to accomplish the preferred fluidness.
Likewise, the presence of additional cementitious materials (SCMs) such as fly ash, slag, or silica fume affects adsorption kinetics and rheological actions; for instance, fly ash can contend for adsorption sites, changing the efficient dosage.
Mixing NSF with various other admixtures like retarders, accelerators, or air-entraining representatives needs mindful compatibility screening to prevent negative interactions such as rapid slump loss or flash set.
Batching series– whether NSF is added previously, during, or after blending– also affects diffusion efficiency and have to be standardized in large operations.
3.2 Environmental and Handling Variables
NSF is readily available in fluid and powder kinds, with liquid formulas using much easier dosing and faster dissolution in blending water.
While usually secure under typical storage space conditions, prolonged exposure to freezing temperatures can cause rainfall, and high heat might weaken the polymer chains gradually.
From an ecological viewpoint, NSF is taken into consideration reduced toxicity and non-corrosive, though correct handling methods must be complied with to prevent breathing of powder or skin irritability.
Its manufacturing involves petrochemical by-products and formaldehyde, raising sustainability worries that have driven research into bio-based choices and greener synthesis routes.
4. Industrial Applications and Future Expectation
4.1 Usage in Precast, Ready-Mix, and High-Strength Concrete
Naphthalene sulfonate superplasticizer is extensively made use of in precast concrete manufacturing, where exact control over setting time, surface area finish, and dimensional precision is necessary.
In ready-mixed concrete, it enables long-distance transport without compromising workability upon arrival at building and construction sites.
It is additionally a vital component in high-strength concrete (HSC) and ultra-high-performance concrete (UHPC), where exceptionally low w/c ratios are called for to accomplish compressive staminas surpassing 100 MPa.
Passage cellular linings, skyscrapers, and prestressed concrete elements benefit from the improved longevity and structural performance given by NSF-modified mixes.
4.2 Fads and Difficulties in Admixture Modern Technology
Despite the appearance of more advanced polycarboxylate ether (PCE) superplasticizers with premium slump retention and reduced dose requirements, NSF continues to be widely utilized because of its cost-effectiveness and tried and tested efficiency.
Continuous research focuses on crossbreed systems integrating NSF with PCEs or nanomaterials to enhance rheology and toughness development.
Efforts to enhance biodegradability, reduce formaldehyde emissions throughout manufacturing, and improve compatibility with low-carbon cements reflect the market’s change toward lasting construction materials.
To conclude, naphthalene sulfonate superplasticizer stands for a keystone innovation in contemporary concrete design, connecting the space in between conventional practices and advanced material efficiency.
Its ability to transform concrete into a very workable yet resilient composite continues to support worldwide facilities advancement, even as next-generation admixtures develop.
