1. Material Basics and Microstructural Layout
1.1 Composition and Crystallographic Security of Alumina

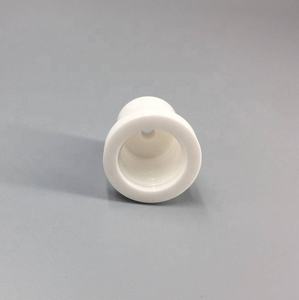

(Alumina Ceramic Nozzles)
Alumina (Al ₂ O TWO), particularly in its alpha phase, is a totally oxidized ceramic with a corundum-type hexagonal close-packed framework, providing exceptional thermal stability, chemical inertness, and mechanical toughness at raised temperature levels.
High-purity alumina (generally 95– 99.9% Al ₂ O FOUR) is liked for nozzle applications due to its minimal impurity content, which reduces grain limit weakening and enhances resistance to thermal and chemical destruction.
The microstructure, including fine, equiaxed grains, is crafted during sintering to reduce porosity and take full advantage of density, straight influencing the nozzle’s erosion resistance and structural integrity under high-velocity fluid flow.
Additives such as MgO are often introduced in trace total up to inhibit irregular grain development throughout sintering, making sure a consistent microstructure that sustains long-lasting integrity.
1.2 Mechanical and Thermal Characteristics Relevant to Nozzle Performance
Alumina porcelains display a Vickers hardness surpassing 1800 HV, making them extremely resistant to rough wear from particulate-laden fluids, a crucial quality in applications such as sandblasting and rough waterjet cutting.
With a flexural strength of 300– 500 MPa and a compressive strength over 2 Grade point average, alumina nozzles maintain dimensional stability under high-pressure operation, normally ranging from 100 to 400 MPa in commercial systems.
Thermally, alumina maintains its mechanical residential or commercial properties approximately 1600 ° C, with a reduced thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) that provides outstanding resistance to thermal shock– vital when revealed to fast temperature changes during start-up or shutdown cycles.
Its thermal conductivity (~ 30 W/m · K) suffices to dissipate local warmth without generating thermal gradients that could lead to breaking, balancing insulation and warm management requirements.
2. Production Processes and Geometric Precision
2.1 Shaping and Sintering Techniques for Nozzle Fabrication
The production of alumina ceramic nozzles starts with high-purity alumina powder, which is refined right into an eco-friendly body making use of techniques such as chilly isostatic pushing (CIP), shot molding, or extrusion, depending upon the wanted geometry and batch dimension.
( Alumina Ceramic Nozzles)
Cold isostatic pressing applies uniform stress from all directions, yielding a homogeneous thickness distribution essential for minimizing problems during sintering.
Injection molding is used for intricate nozzle forms with interior tapers and great orifices, permitting high dimensional accuracy and reproducibility in mass production.
After forming, the eco-friendly compacts go through a two-stage thermal therapy: debinding to eliminate natural binders and sintering at temperature levels in between 1500 ° C and 1650 ° C to achieve near-theoretical density via solid-state diffusion.
Accurate control of sintering atmosphere and heating/cooling rates is essential to prevent bending, cracking, or grain coarsening that might compromise nozzle performance.
2.2 Machining, Polishing, and Quality Assurance
Post-sintering, alumina nozzles often require precision machining to attain limited tolerances, especially in the orifice area where circulation characteristics are most sensitive to surface finish and geometry.
Diamond grinding and splashing are utilized to fine-tune inner and exterior surfaces, achieving surface roughness values listed below 0.1 µm, which lowers circulation resistance and stops particle accumulation.
The orifice, generally varying from 0.3 to 3.0 mm in diameter, should be devoid of micro-cracks and chamfers to make certain laminar circulation and constant spray patterns.
Non-destructive screening methods such as optical microscopy, X-ray inspection, and stress cycling examinations are used to verify structural stability and efficiency consistency prior to implementation.
Personalized geometries, including convergent-divergent (de Laval) profiles for supersonic flow or multi-hole ranges for fan spray patterns, are significantly produced utilizing sophisticated tooling and computer-aided layout (CAD)-driven manufacturing.
3. Practical Advantages Over Alternative Nozzle Materials
3.1 Superior Erosion and Rust Resistance
Compared to metal (e.g., tungsten carbide, stainless steel) or polymer nozzles, alumina displays much higher resistance to abrasive wear, especially in environments involving silica sand, garnet, or other tough abrasives utilized in surface area prep work and cutting.
Steel nozzles weaken quickly because of micro-fracturing and plastic contortion, requiring regular replacement, whereas alumina nozzles can last 3– 5 times much longer, dramatically minimizing downtime and functional expenses.
Furthermore, alumina is inert to the majority of acids, alkalis, and solvents, making it ideal for chemical spraying, etching, and cleaning processes where metal parts would certainly wear away or infect the liquid.
This chemical stability is especially useful in semiconductor production, pharmaceutical processing, and food-grade applications requiring high pureness.
3.2 Thermal and Electric Insulation Feature
Alumina’s high electric resistivity (> 10 ¹⁴ Ω · centimeters) makes it ideal for usage in electrostatic spray covering systems, where it avoids charge leakage and ensures uniform paint atomization.
Its thermal insulation ability enables risk-free procedure in high-temperature spraying atmospheres, such as fire splashing or thermal cleansing, without heat transfer to bordering components.
Unlike metals, alumina does not militarize undesirable chemical reactions in responsive fluid streams, maintaining the honesty of delicate solutions.
4. Industrial Applications and Technical Effect
4.1 Duties in Abrasive Jet Machining and Surface Treatment
Alumina ceramic nozzles are vital in rough blowing up systems for corrosion removal, paint stripping, and surface area texturing in automobile, aerospace, and building sectors.
Their capacity to keep a regular orifice diameter over extended use ensures consistent rough rate and effect angle, directly influencing surface area finish quality and procedure repeatability.
In unpleasant waterjet cutting, alumina focusing tubes direct the high-pressure water-abrasive combination, holding up against erosive pressures that would swiftly degrade softer products.
4.2 Usage in Additive Production, Spray Layer, and Liquid Control
In thermal spray systems, such as plasma and flame spraying, alumina nozzles direct high-temperature gas circulations and liquified particles onto substrates, taking advantage of their thermal shock resistance and dimensional security.
They are additionally employed in accuracy spray nozzles for farming chemicals, inkjet systems, and gas atomization, where wear resistance guarantees long-lasting application accuracy.
In 3D printing, especially in binder jetting and material extrusion, alumina nozzles supply great powders or thick pastes with very little clogging or use.
Arising applications consist of microfluidic systems and lab-on-a-chip devices, where miniaturized alumina components supply longevity and biocompatibility.
In recap, alumina ceramic nozzles stand for an essential junction of materials scientific research and commercial engineering.
Their exceptional combination of firmness, thermal security, and chemical resistance makes it possible for reputable performance in a few of the most requiring liquid handling atmospheres.
As commercial procedures push toward greater pressures, finer tolerances, and much longer solution periods, alumina porcelains continue to establish the standard for long lasting, high-precision circulation control parts.
