1. The Material Foundation and Crystallographic Identification of Alumina Ceramics
1.1 Atomic Design and Stage Stability

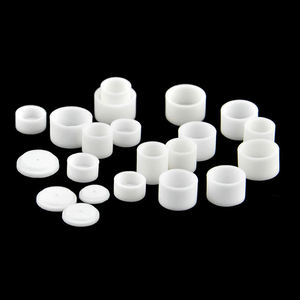

(Alumina Ceramics)
Alumina porcelains, largely composed of aluminum oxide (Al two O FOUR), stand for among one of the most extensively used courses of sophisticated ceramics because of their phenomenal balance of mechanical toughness, thermal durability, and chemical inertness.
At the atomic degree, the performance of alumina is rooted in its crystalline structure, with the thermodynamically secure alpha stage (α-Al two O FOUR) being the leading form utilized in design applications.
This phase embraces a rhombohedral crystal system within the hexagonal close-packed (HCP) latticework, where oxygen anions form a thick plan and aluminum cations occupy two-thirds of the octahedral interstitial websites.
The resulting framework is highly secure, adding to alumina’s high melting point of about 2072 ° C and its resistance to decomposition under severe thermal and chemical conditions.
While transitional alumina phases such as gamma (γ), delta (δ), and theta (θ) exist at reduced temperature levels and display greater area, they are metastable and irreversibly transform right into the alpha stage upon home heating over 1100 ° C, making α-Al two O ₃ the unique stage for high-performance structural and useful parts.
1.2 Compositional Grading and Microstructural Engineering
The residential properties of alumina ceramics are not fixed but can be tailored with controlled variants in pureness, grain size, and the addition of sintering aids.
High-purity alumina (≥ 99.5% Al Two O THREE) is utilized in applications requiring optimum mechanical strength, electrical insulation, and resistance to ion diffusion, such as in semiconductor handling and high-voltage insulators.
Lower-purity grades (varying from 85% to 99% Al ₂ O TWO) frequently include secondary phases like mullite (3Al two O FIVE · 2SiO TWO) or glassy silicates, which improve sinterability and thermal shock resistance at the cost of solidity and dielectric efficiency.
An essential consider efficiency optimization is grain size control; fine-grained microstructures, accomplished with the enhancement of magnesium oxide (MgO) as a grain development prevention, substantially enhance fracture strength and flexural stamina by restricting crack proliferation.
Porosity, even at low levels, has a destructive impact on mechanical stability, and totally dense alumina porcelains are typically generated through pressure-assisted sintering methods such as warm pushing or hot isostatic pushing (HIP).
The interaction in between make-up, microstructure, and processing specifies the useful envelope within which alumina ceramics run, allowing their use throughout a vast range of commercial and technical domain names.
( Alumina Ceramics)
2. Mechanical and Thermal Efficiency in Demanding Environments
2.1 Stamina, Hardness, and Wear Resistance
Alumina porcelains exhibit a distinct mix of high firmness and modest fracture toughness, making them ideal for applications involving abrasive wear, erosion, and impact.
With a Vickers firmness usually ranging from 15 to 20 GPa, alumina rankings amongst the hardest engineering products, surpassed only by diamond, cubic boron nitride, and certain carbides.
This extreme solidity converts into outstanding resistance to scratching, grinding, and bit impingement, which is made use of in parts such as sandblasting nozzles, reducing devices, pump seals, and wear-resistant liners.
Flexural toughness worths for thick alumina array from 300 to 500 MPa, depending upon pureness and microstructure, while compressive strength can go beyond 2 GPa, permitting alumina components to stand up to high mechanical lots without deformation.
Despite its brittleness– a typical quality amongst porcelains– alumina’s performance can be maximized with geometric layout, stress-relief attributes, and composite support approaches, such as the unification of zirconia bits to cause transformation toughening.
2.2 Thermal Habits and Dimensional Security
The thermal buildings of alumina porcelains are central to their usage in high-temperature and thermally cycled atmospheres.
With a thermal conductivity of 20– 30 W/m · K– higher than most polymers and comparable to some steels– alumina effectively dissipates heat, making it appropriate for warm sinks, shielding substrates, and furnace components.
Its reduced coefficient of thermal expansion (~ 8 × 10 ⁻⁶/ K) makes certain very little dimensional adjustment throughout heating & cooling, minimizing the threat of thermal shock fracturing.
This security is particularly important in applications such as thermocouple protection tubes, spark plug insulators, and semiconductor wafer dealing with systems, where specific dimensional control is crucial.
Alumina preserves its mechanical stability as much as temperatures of 1600– 1700 ° C in air, beyond which creep and grain boundary gliding may launch, depending on purity and microstructure.
In vacuum or inert atmospheres, its performance extends even better, making it a recommended product for space-based instrumentation and high-energy physics experiments.
3. Electrical and Dielectric Qualities for Advanced Technologies
3.1 Insulation and High-Voltage Applications
Among one of the most considerable functional qualities of alumina porcelains is their impressive electric insulation capability.
With a volume resistivity surpassing 10 ¹⁴ Ω · centimeters at space temperature and a dielectric toughness of 10– 15 kV/mm, alumina works as a reliable insulator in high-voltage systems, including power transmission devices, switchgear, and electronic product packaging.
Its dielectric consistent (εᵣ ≈ 9– 10 at 1 MHz) is relatively steady throughout a vast frequency variety, making it suitable for use in capacitors, RF elements, and microwave substratums.
Reduced dielectric loss (tan δ < 0.0005) guarantees minimal energy dissipation in rotating existing (AC) applications, boosting system performance and decreasing heat generation.
In printed circuit boards (PCBs) and hybrid microelectronics, alumina substrates offer mechanical support and electric seclusion for conductive traces, making it possible for high-density circuit assimilation in harsh atmospheres.
3.2 Performance in Extreme and Sensitive Settings
Alumina porcelains are distinctly fit for use in vacuum, cryogenic, and radiation-intensive atmospheres due to their low outgassing prices and resistance to ionizing radiation.
In fragment accelerators and fusion reactors, alumina insulators are made use of to isolate high-voltage electrodes and analysis sensors without presenting pollutants or deteriorating under long term radiation exposure.
Their non-magnetic nature likewise makes them optimal for applications entailing strong electromagnetic fields, such as magnetic vibration imaging (MRI) systems and superconducting magnets.
Furthermore, alumina’s biocompatibility and chemical inertness have brought about its fostering in clinical tools, consisting of dental implants and orthopedic components, where lasting security and non-reactivity are critical.
4. Industrial, Technological, and Arising Applications
4.1 Role in Industrial Equipment and Chemical Processing
Alumina ceramics are thoroughly used in industrial tools where resistance to use, rust, and high temperatures is important.
Components such as pump seals, shutoff seats, nozzles, and grinding media are commonly made from alumina due to its capability to stand up to abrasive slurries, hostile chemicals, and raised temperature levels.
In chemical handling plants, alumina linings secure activators and pipelines from acid and antacid assault, prolonging devices life and decreasing maintenance prices.
Its inertness also makes it appropriate for use in semiconductor construction, where contamination control is critical; alumina chambers and wafer watercrafts are revealed to plasma etching and high-purity gas atmospheres without leaching pollutants.
4.2 Integration into Advanced Production and Future Technologies
Past standard applications, alumina porcelains are playing a significantly essential function in emerging modern technologies.
In additive manufacturing, alumina powders are used in binder jetting and stereolithography (RUN-DOWN NEIGHBORHOOD) refines to fabricate complex, high-temperature-resistant elements for aerospace and energy systems.
Nanostructured alumina films are being discovered for catalytic assistances, sensing units, and anti-reflective layers because of their high surface and tunable surface area chemistry.
In addition, alumina-based compounds, such as Al ₂ O SIX-ZrO ₂ or Al Two O ₃-SiC, are being established to overcome the fundamental brittleness of monolithic alumina, offering boosted toughness and thermal shock resistance for next-generation structural materials.
As industries remain to push the borders of performance and integrity, alumina porcelains remain at the leading edge of product advancement, bridging the void between architectural robustness and functional flexibility.
In recap, alumina porcelains are not simply a class of refractory products yet a foundation of modern-day engineering, enabling technical development across energy, electronics, medical care, and commercial automation.
Their unique mix of residential properties– rooted in atomic framework and refined via advanced handling– guarantees their continued relevance in both developed and emerging applications.
As material scientific research advances, alumina will undoubtedly continue to be a vital enabler of high-performance systems operating at the edge of physical and ecological extremes.
