1. Product Basics and Microstructural Attributes of Alumina Ceramics
1.1 Make-up, Pureness Grades, and Crystallographic Feature

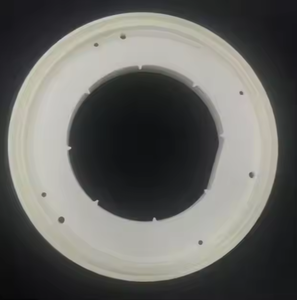

(Alumina Ceramic Wear Liners)
Alumina (Al ₂ O ₃), or aluminum oxide, is one of one of the most commonly utilized technical porcelains in industrial design because of its outstanding equilibrium of mechanical toughness, chemical stability, and cost-effectiveness.
When engineered into wear linings, alumina ceramics are normally made with pureness degrees ranging from 85% to 99.9%, with higher pureness representing enhanced solidity, put on resistance, and thermal performance.
The dominant crystalline phase is alpha-alumina, which takes on a hexagonal close-packed (HCP) structure identified by strong ionic and covalent bonding, contributing to its high melting factor (~ 2072 ° C )and reduced thermal conductivity.
Microstructurally, alumina ceramics consist of fine, equiaxed grains whose size and distribution are managed throughout sintering to maximize mechanical homes.
Grain sizes commonly range from submicron to several micrometers, with finer grains usually boosting fracture strength and resistance to break breeding under unpleasant filling.
Minor additives such as magnesium oxide (MgO) are frequently presented in trace total up to prevent irregular grain growth throughout high-temperature sintering, guaranteeing uniform microstructure and dimensional security.
The resulting product exhibits a Vickers solidity of 1500– 2000 HV, dramatically exceeding that of set steel (normally 600– 800 HV), making it remarkably resistant to surface degradation in high-wear atmospheres.
1.2 Mechanical and Thermal Performance in Industrial Conditions
Alumina ceramic wear linings are chosen primarily for their exceptional resistance to abrasive, erosive, and sliding wear mechanisms prevalent wholesale product dealing with systems.
They possess high compressive strength (up to 3000 MPa), good flexural toughness (300– 500 MPa), and exceptional stiffness (Young’s modulus of ~ 380 GPa), enabling them to endure extreme mechanical loading without plastic contortion.
Although inherently breakable compared to steels, their low coefficient of friction and high surface hardness lessen bit bond and decrease wear prices by orders of size relative to steel or polymer-based choices.
Thermally, alumina preserves structural integrity approximately 1600 ° C in oxidizing ambiences, enabling usage in high-temperature handling atmospheres such as kiln feed systems, boiler ducting, and pyroprocessing tools.
( Alumina Ceramic Wear Liners)
Its reduced thermal development coefficient (~ 8 × 10 ⁻⁶/ K) contributes to dimensional security throughout thermal biking, lowering the danger of cracking due to thermal shock when correctly set up.
Additionally, alumina is electrically shielding and chemically inert to many acids, alkalis, and solvents, making it ideal for corrosive settings where metal linings would break down swiftly.
These consolidated residential or commercial properties make alumina ceramics perfect for shielding important framework in mining, power generation, concrete manufacturing, and chemical processing industries.
2. Manufacturing Processes and Design Combination Strategies
2.1 Forming, Sintering, and Quality Control Protocols
The manufacturing of alumina ceramic wear linings includes a sequence of precision manufacturing actions created to attain high thickness, minimal porosity, and consistent mechanical performance.
Raw alumina powders are processed with milling, granulation, and developing methods such as dry pushing, isostatic pushing, or extrusion, relying on the preferred geometry– tiles, plates, pipelines, or custom-shaped sectors.
Green bodies are after that sintered at temperature levels between 1500 ° C and 1700 ° C in air, promoting densification with solid-state diffusion and accomplishing relative thickness surpassing 95%, often approaching 99% of academic thickness.
Full densification is essential, as recurring porosity acts as tension concentrators and accelerates wear and crack under service conditions.
Post-sintering procedures might include diamond grinding or washing to attain tight dimensional tolerances and smooth surface coatings that minimize friction and bit capturing.
Each batch undertakes rigorous quality assurance, including X-ray diffraction (XRD) for stage analysis, scanning electron microscopy (SEM) for microstructural analysis, and hardness and bend screening to verify compliance with worldwide criteria such as ISO 6474 or ASTM B407.
2.2 Mounting Techniques and System Compatibility Considerations
Reliable assimilation of alumina wear linings right into industrial tools requires cautious focus to mechanical add-on and thermal development compatibility.
Usual installation approaches include sticky bonding making use of high-strength ceramic epoxies, mechanical fastening with studs or anchors, and embedding within castable refractory matrices.
Sticky bonding is commonly utilized for flat or delicately rounded surface areas, providing uniform tension distribution and vibration damping, while stud-mounted systems allow for very easy substitute and are favored in high-impact areas.
To suit differential thermal development between alumina and metallic substrates (e.g., carbon steel), engineered voids, adaptable adhesives, or certified underlayers are incorporated to avoid delamination or fracturing throughout thermal transients.
Developers must also take into consideration side security, as ceramic tiles are vulnerable to damaging at exposed corners; solutions include diagonal sides, metal shadows, or overlapping floor tile configurations.
Proper installment guarantees long service life and optimizes the safety feature of the liner system.
3. Put On Systems and Performance Evaluation in Solution Environments
3.1 Resistance to Abrasive, Erosive, and Effect Loading
Alumina ceramic wear linings master settings controlled by 3 key wear devices: two-body abrasion, three-body abrasion, and fragment erosion.
In two-body abrasion, hard bits or surface areas straight gouge the liner surface area, a typical event in chutes, hoppers, and conveyor changes.
Three-body abrasion entails loose particles trapped in between the liner and relocating product, causing rolling and scratching action that gradually removes material.
Abrasive wear occurs when high-velocity particles impinge on the surface, specifically in pneumatic communicating lines and cyclone separators.
Due to its high solidity and reduced crack toughness, alumina is most effective in low-impact, high-abrasion circumstances.
It executes remarkably well versus siliceous ores, coal, fly ash, and cement clinker, where wear rates can be decreased by 10– 50 times contrasted to mild steel linings.
Nevertheless, in applications including repeated high-energy effect, such as main crusher chambers, crossbreed systems combining alumina ceramic tiles with elastomeric supports or metal shields are often employed to take in shock and protect against fracture.
3.2 Area Testing, Life Process Evaluation, and Failure Mode Assessment
Performance analysis of alumina wear liners involves both lab testing and field tracking.
Standard examinations such as the ASTM G65 completely dry sand rubber wheel abrasion examination provide comparative wear indices, while personalized slurry disintegration gears imitate site-specific conditions.
In commercial settings, wear price is commonly determined in mm/year or g/kWh, with service life forecasts based on preliminary thickness and observed destruction.
Failing modes include surface area polishing, micro-cracking, spalling at sides, and complete tile dislodgement as a result of adhesive deterioration or mechanical overload.
Source evaluation usually discloses setup errors, inappropriate quality selection, or unexpected impact loads as primary factors to premature failing.
Life cycle expense evaluation consistently demonstrates that regardless of greater initial prices, alumina liners use remarkable complete cost of ownership due to extended replacement periods, minimized downtime, and reduced upkeep labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Implementations Across Heavy Industries
Alumina ceramic wear linings are released throughout a wide range of industrial markets where material degradation poses operational and financial difficulties.
In mining and mineral processing, they protect transfer chutes, mill linings, hydrocyclones, and slurry pumps from rough slurries containing quartz, hematite, and other hard minerals.
In power plants, alumina ceramic tiles line coal pulverizer air ducts, central heating boiler ash hoppers, and electrostatic precipitator components exposed to fly ash erosion.
Cement makers use alumina liners in raw mills, kiln inlet zones, and clinker conveyors to fight the highly rough nature of cementitious products.
The steel sector utilizes them in blast heating system feed systems and ladle shrouds, where resistance to both abrasion and moderate thermal loads is crucial.
Even in less standard applications such as waste-to-energy plants and biomass handling systems, alumina ceramics supply long lasting security against chemically hostile and coarse products.
4.2 Arising Patterns: Composite Systems, Smart Liners, and Sustainability
Current study concentrates on boosting the toughness and performance of alumina wear systems with composite layout.
Alumina-zirconia (Al ₂ O FIVE-ZrO ₂) composites take advantage of makeover strengthening from zirconia to improve crack resistance, while alumina-titanium carbide (Al two O TWO-TiC) qualities use enhanced efficiency in high-temperature moving wear.
An additional development entails embedding sensing units within or beneath ceramic linings to monitor wear development, temperature level, and impact regularity– making it possible for anticipating maintenance and digital double assimilation.
From a sustainability viewpoint, the extensive service life of alumina linings decreases material consumption and waste generation, lining up with round economic situation principles in industrial procedures.
Recycling of invested ceramic liners right into refractory accumulations or construction products is likewise being discovered to decrease environmental impact.
To conclude, alumina ceramic wear linings stand for a cornerstone of contemporary industrial wear protection technology.
Their extraordinary firmness, thermal security, and chemical inertness, combined with mature manufacturing and setup techniques, make them vital in combating material deterioration across hefty industries.
As product scientific research developments and electronic tracking ends up being extra incorporated, the future generation of wise, resilient alumina-based systems will certainly better boost functional performance and sustainability in unpleasant settings.
