1. Product Science and Structural Properties
1.1 Crystal Structure and Chemical Stability

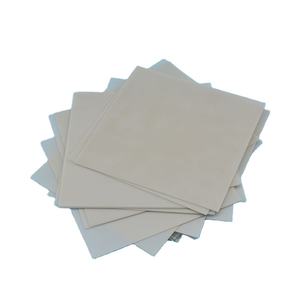

(Aluminum Nitride Ceramic Substrates)
Aluminum nitride (AlN) is a wide bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, made up of alternating layers of aluminum and nitrogen atoms bonded with strong covalent communications.
This durable atomic arrangement enhances AlN with remarkable thermal security, keeping structural honesty approximately 2200 ° C in inert environments and withstanding disintegration under extreme thermal biking.
Unlike alumina (Al two O SIX), AlN is chemically inert to thaw metals and lots of reactive gases, making it ideal for rough environments such as semiconductor processing chambers and high-temperature heating systems.
Its high resistance to oxidation– forming only a slim protective Al ₂ O ₃ layer at surface upon exposure to air– ensures lasting dependability without considerable destruction of bulk residential properties.
Moreover, AlN displays outstanding electric insulation with a resistivity surpassing 10 ¹⁴ Ω · cm and a dielectric toughness over 30 kV/mm, essential for high-voltage applications.
1.2 Thermal Conductivity and Electronic Features
The most specifying feature of light weight aluminum nitride is its superior thermal conductivity, normally varying from 140 to 180 W/(m · K )for commercial-grade substratums– over 5 times higher than that of alumina (≈ 30 W/(m · K)).
This performance originates from the reduced atomic mass of nitrogen and aluminum, integrated with strong bonding and very little factor flaws, which permit efficient phonon transportation via the lattice.
Nevertheless, oxygen contaminations are particularly destructive; also trace amounts (over 100 ppm) alternative to nitrogen sites, creating aluminum vacancies and spreading phonons, thus significantly reducing thermal conductivity.
High-purity AlN powders manufactured through carbothermal reduction or straight nitridation are essential to attain ideal warm dissipation.
Regardless of being an electric insulator, AlN’s piezoelectric and pyroelectric residential properties make it valuable in sensing units and acoustic wave tools, while its large bandgap (~ 6.2 eV) sustains operation in high-power and high-frequency digital systems.
2. Manufacture Procedures and Production Difficulties

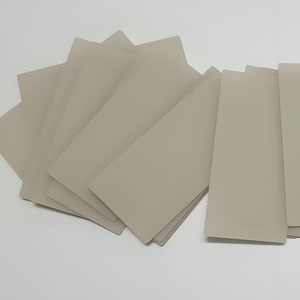

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Methods
Making high-performance AlN substrates starts with the synthesis of ultra-fine, high-purity powder, generally accomplished via responses such as Al ₂ O FOUR + 3C + N ₂ → 2AlN + 3CO (carbothermal decrease) or straight nitridation of aluminum metal: 2Al + N TWO → 2AlN.
The resulting powder needs to be very carefully grated and doped with sintering aids like Y TWO O TWO, CaO, or uncommon earth oxides to advertise densification at temperature levels in between 1700 ° C and 1900 ° C under nitrogen environment.
These additives develop transient liquid phases that enhance grain boundary diffusion, allowing complete densification (> 99% theoretical density) while reducing oxygen contamination.
Post-sintering annealing in carbon-rich atmospheres can better lower oxygen material by removing intergranular oxides, thus restoring peak thermal conductivity.
Attaining consistent microstructure with regulated grain dimension is essential to balance mechanical toughness, thermal performance, and manufacturability.
2.2 Substrate Shaping and Metallization
When sintered, AlN porcelains are precision-ground and splashed to fulfill limited dimensional tolerances needed for electronic product packaging, usually to micrometer-level monotony.
Through-hole exploration, laser cutting, and surface area patterning enable integration into multilayer plans and crossbreed circuits.
A vital step in substrate fabrication is metallization– the application of conductive layers (commonly tungsten, molybdenum, or copper) via processes such as thick-film printing, thin-film sputtering, or straight bonding of copper (DBC).
For DBC, copper aluminum foils are bound to AlN surface areas at raised temperatures in a regulated ambience, forming a strong user interface ideal for high-current applications.
Alternative methods like active steel brazing (AMB) use titanium-containing solders to improve adhesion and thermal fatigue resistance, specifically under repeated power biking.
Proper interfacial design ensures reduced thermal resistance and high mechanical integrity in operating tools.
3. Efficiency Advantages in Electronic Equipment
3.1 Thermal Monitoring in Power Electronic Devices
AlN substratums excel in managing warm produced by high-power semiconductor devices such as IGBTs, MOSFETs, and RF amplifiers utilized in electric vehicles, renewable energy inverters, and telecoms facilities.
Effective heat extraction protects against localized hotspots, decreases thermal tension, and extends gadget lifetime by alleviating electromigration and delamination threats.
Compared to typical Al two O five substratums, AlN makes it possible for smaller sized package dimensions and greater power densities due to its premium thermal conductivity, permitting developers to press efficiency boundaries without jeopardizing integrity.
In LED lights and laser diodes, where joint temperature straight affects performance and shade stability, AlN substrates significantly boost luminous output and operational life-span.
Its coefficient of thermal development (CTE ≈ 4.5 ppm/K) likewise very closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), decreasing thermo-mechanical stress and anxiety throughout thermal biking.
3.2 Electric and Mechanical Integrity
Past thermal performance, AlN supplies low dielectric loss (tan δ < 0.0005) and secure permittivity (εᵣ ≈ 8.9) across a broad regularity variety, making it perfect for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature prevents moisture access, eliminating deterioration threats in moist settings– a vital advantage over organic substratums.
Mechanically, AlN possesses high flexural stamina (300– 400 MPa) and hardness (HV ≈ 1200), making sure durability throughout handling, assembly, and area operation.
These attributes jointly contribute to boosted system integrity, decreased failure prices, and lower overall expense of possession in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Defense Equipments
AlN ceramic substrates are now common in innovative power modules for commercial motor drives, wind and solar inverters, and onboard chargers in electrical and hybrid automobiles.
In aerospace and defense, they sustain radar systems, electronic war units, and satellite interactions, where efficiency under severe problems is non-negotiable.
Clinical imaging equipment, consisting of X-ray generators and MRI systems, additionally take advantage of AlN’s radiation resistance and signal stability.
As electrification fads increase throughout transport and energy industries, demand for AlN substratums remains to expand, driven by the requirement for small, effective, and reputable power electronics.
4.2 Emerging Integration and Sustainable Development
Future improvements concentrate on incorporating AlN into three-dimensional product packaging designs, embedded passive parts, and heterogeneous combination systems combining Si, SiC, and GaN devices.
Research into nanostructured AlN movies and single-crystal substratums intends to more increase thermal conductivity toward theoretical limitations (> 300 W/(m · K)) for next-generation quantum and optoelectronic tools.
Efforts to reduce manufacturing costs through scalable powder synthesis, additive production of complicated ceramic frameworks, and recycling of scrap AlN are getting momentum to improve sustainability.
Additionally, modeling devices utilizing finite component evaluation (FEA) and artificial intelligence are being employed to enhance substrate design for certain thermal and electrical tons.
Finally, light weight aluminum nitride ceramic substratums stand for a keystone modern technology in contemporary electronic devices, uniquely connecting the space between electric insulation and extraordinary thermal transmission.
Their function in making it possible for high-efficiency, high-reliability power systems emphasizes their strategic importance in the continuous evolution of electronic and energy technologies.
