1. Make-up and Architectural Qualities of Fused Quartz
1.1 Amorphous Network and Thermal Security

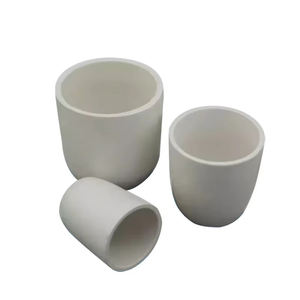

(Quartz Crucibles)
Quartz crucibles are high-temperature containers produced from fused silica, a synthetic kind of silicon dioxide (SiO ₂) derived from the melting of all-natural quartz crystals at temperature levels going beyond 1700 ° C.
Unlike crystalline quartz, integrated silica possesses an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which conveys phenomenal thermal shock resistance and dimensional stability under rapid temperature changes.
This disordered atomic structure protects against cleavage along crystallographic aircrafts, making fused silica much less vulnerable to splitting during thermal cycling compared to polycrystalline porcelains.
The product exhibits a reduced coefficient of thermal development (~ 0.5 × 10 ⁻⁶/ K), one of the lowest among design materials, allowing it to withstand extreme thermal slopes without fracturing– a vital home in semiconductor and solar battery production.
Fused silica also preserves outstanding chemical inertness against many acids, liquified metals, and slags, although it can be slowly etched by hydrofluoric acid and warm phosphoric acid.
Its high conditioning factor (~ 1600– 1730 ° C, depending upon pureness and OH content) permits sustained operation at raised temperature levels required for crystal growth and metal refining procedures.
1.2 Pureness Grading and Micronutrient Control
The efficiency of quartz crucibles is extremely depending on chemical pureness, especially the concentration of metallic contaminations such as iron, sodium, potassium, light weight aluminum, and titanium.
Even trace quantities (components per million degree) of these contaminants can migrate right into molten silicon throughout crystal growth, breaking down the electrical buildings of the resulting semiconductor product.
High-purity grades made use of in electronics producing commonly have over 99.95% SiO ₂, with alkali metal oxides restricted to less than 10 ppm and shift metals listed below 1 ppm.
Pollutants originate from raw quartz feedstock or handling equipment and are lessened via mindful choice of mineral resources and purification techniques like acid leaching and flotation.
Furthermore, the hydroxyl (OH) content in merged silica affects its thermomechanical habits; high-OH types provide better UV transmission yet lower thermal stability, while low-OH variations are favored for high-temperature applications due to minimized bubble formation.

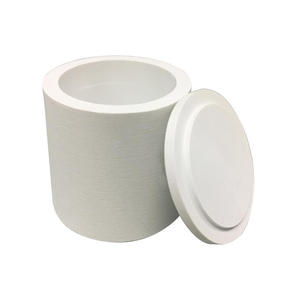

( Quartz Crucibles)
2. Production Process and Microstructural Style
2.1 Electrofusion and Developing Methods
Quartz crucibles are primarily created using electrofusion, a procedure in which high-purity quartz powder is fed right into a turning graphite mold within an electrical arc heater.
An electrical arc produced between carbon electrodes melts the quartz particles, which strengthen layer by layer to form a smooth, thick crucible shape.
This method generates a fine-grained, homogeneous microstructure with minimal bubbles and striae, vital for consistent warmth distribution and mechanical honesty.
Different methods such as plasma fusion and flame combination are used for specialized applications requiring ultra-low contamination or certain wall surface density accounts.
After casting, the crucibles undergo regulated cooling (annealing) to soothe internal stress and anxieties and protect against spontaneous cracking throughout solution.
Surface area completing, including grinding and polishing, makes sure dimensional precision and lowers nucleation websites for unwanted formation throughout usage.
2.2 Crystalline Layer Engineering and Opacity Control
A specifying feature of contemporary quartz crucibles, especially those made use of in directional solidification of multicrystalline silicon, is the crafted internal layer framework.
During manufacturing, the internal surface area is frequently treated to advertise the development of a slim, regulated layer of cristobalite– a high-temperature polymorph of SiO ₂– upon very first home heating.
This cristobalite layer acts as a diffusion barrier, reducing direct interaction between liquified silicon and the underlying integrated silica, therefore minimizing oxygen and metal contamination.
Additionally, the existence of this crystalline stage improves opacity, enhancing infrared radiation absorption and promoting more uniform temperature level circulation within the melt.
Crucible designers meticulously stabilize the density and connection of this layer to prevent spalling or cracking because of quantity modifications throughout stage shifts.
3. Useful Performance in High-Temperature Applications
3.1 Function in Silicon Crystal Growth Processes
Quartz crucibles are important in the production of monocrystalline and multicrystalline silicon, working as the primary container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ procedure, a seed crystal is dipped right into liquified silicon kept in a quartz crucible and slowly drew upwards while turning, allowing single-crystal ingots to form.
Although the crucible does not directly get in touch with the expanding crystal, communications between molten silicon and SiO ₂ walls cause oxygen dissolution right into the melt, which can affect service provider lifetime and mechanical toughness in ended up wafers.
In DS processes for photovoltaic-grade silicon, large-scale quartz crucibles enable the regulated cooling of hundreds of kgs of liquified silicon into block-shaped ingots.
Right here, finishings such as silicon nitride (Si two N FOUR) are related to the internal surface area to prevent adhesion and promote very easy launch of the strengthened silicon block after cooling.
3.2 Deterioration Systems and Service Life Limitations
Regardless of their toughness, quartz crucibles degrade during duplicated high-temperature cycles because of a number of related mechanisms.
Viscous flow or contortion happens at long term direct exposure over 1400 ° C, bring about wall surface thinning and loss of geometric honesty.
Re-crystallization of integrated silica into cristobalite creates internal anxieties because of quantity development, potentially creating cracks or spallation that pollute the thaw.
Chemical erosion occurs from reduction responses between liquified silicon and SiO TWO: SiO TWO + Si → 2SiO(g), generating volatile silicon monoxide that gets away and damages the crucible wall.
Bubble development, driven by trapped gases or OH teams, further jeopardizes architectural toughness and thermal conductivity.
These deterioration paths limit the variety of reuse cycles and necessitate specific process control to take full advantage of crucible lifespan and item return.
4. Arising Innovations and Technological Adaptations
4.1 Coatings and Composite Alterations
To boost performance and resilience, progressed quartz crucibles include useful coatings and composite frameworks.
Silicon-based anti-sticking layers and drugged silica finishes enhance release features and minimize oxygen outgassing throughout melting.
Some producers integrate zirconia (ZrO ₂) particles into the crucible wall to increase mechanical toughness and resistance to devitrification.
Study is continuous into completely transparent or gradient-structured crucibles created to optimize convected heat transfer in next-generation solar furnace layouts.
4.2 Sustainability and Recycling Challenges
With enhancing demand from the semiconductor and solar industries, sustainable use quartz crucibles has actually ended up being a priority.
Used crucibles contaminated with silicon deposit are tough to recycle as a result of cross-contamination threats, leading to considerable waste generation.
Efforts concentrate on developing reusable crucible liners, enhanced cleansing procedures, and closed-loop recycling systems to recoup high-purity silica for additional applications.
As tool effectiveness demand ever-higher product purity, the role of quartz crucibles will certainly continue to evolve via advancement in products scientific research and procedure design.
In summary, quartz crucibles represent a crucial user interface between raw materials and high-performance electronic products.
Their unique mix of purity, thermal strength, and structural style allows the fabrication of silicon-based technologies that power contemporary computer and renewable resource systems.
