1. Material Make-up and Architectural Style
1.1 Glass Chemistry and Spherical Design

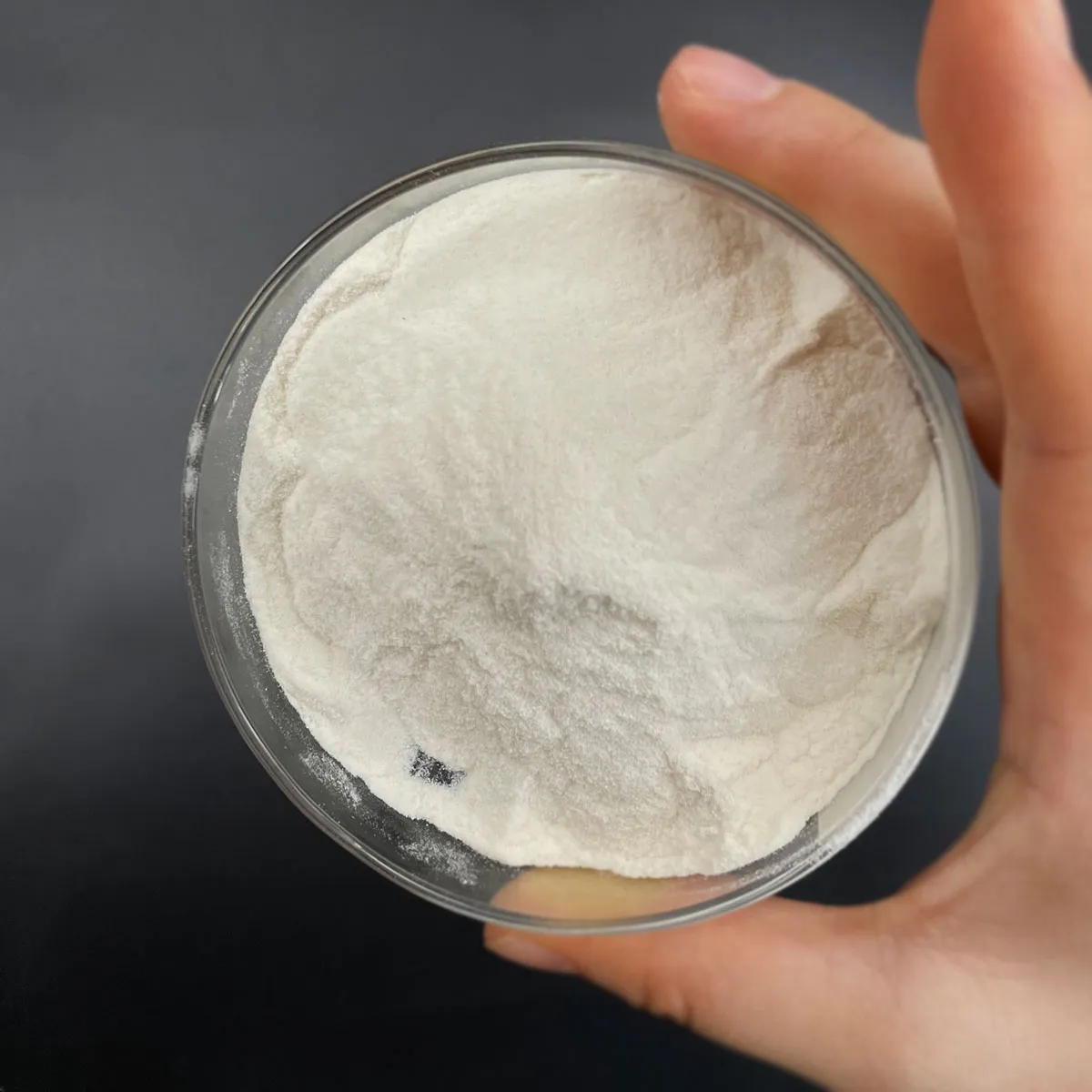

(Hollow glass microspheres)
Hollow glass microspheres (HGMs) are tiny, round bits made up of alkali borosilicate or soda-lime glass, normally varying from 10 to 300 micrometers in size, with wall surface thicknesses between 0.5 and 2 micrometers.
Their defining attribute is a closed-cell, hollow inside that passes on ultra-low thickness– usually listed below 0.2 g/cm two for uncrushed balls– while maintaining a smooth, defect-free surface area important for flowability and composite integration.
The glass structure is crafted to stabilize mechanical strength, thermal resistance, and chemical durability; borosilicate-based microspheres provide premium thermal shock resistance and reduced antacids material, reducing reactivity in cementitious or polymer matrices.
The hollow structure is developed with a regulated growth procedure throughout production, where precursor glass fragments consisting of a volatile blowing agent (such as carbonate or sulfate substances) are warmed in a heater.
As the glass softens, interior gas generation develops inner pressure, triggering the bit to inflate into an excellent sphere prior to quick air conditioning solidifies the framework.
This precise control over dimension, wall thickness, and sphericity enables predictable performance in high-stress design atmospheres.
1.2 Thickness, Toughness, and Failure Devices
A critical efficiency statistics for HGMs is the compressive strength-to-density proportion, which establishes their capacity to survive handling and service lots without fracturing.
Industrial qualities are classified by their isostatic crush toughness, varying from low-strength rounds (~ 3,000 psi) ideal for layers and low-pressure molding, to high-strength variations surpassing 15,000 psi made use of in deep-sea buoyancy components and oil well cementing.
Failing normally happens via elastic twisting rather than brittle fracture, a behavior governed by thin-shell mechanics and affected by surface problems, wall harmony, and inner pressure.
As soon as fractured, the microsphere loses its shielding and light-weight residential or commercial properties, stressing the demand for cautious handling and matrix compatibility in composite design.
In spite of their frailty under factor tons, the round geometry distributes tension uniformly, allowing HGMs to stand up to considerable hydrostatic pressure in applications such as subsea syntactic foams.
( Hollow glass microspheres)
2. Production and Quality Assurance Processes
2.1 Manufacturing Techniques and Scalability
HGMs are produced industrially making use of fire spheroidization or rotating kiln expansion, both including high-temperature handling of raw glass powders or preformed beads.
In flame spheroidization, fine glass powder is infused right into a high-temperature fire, where surface stress draws molten beads right into balls while interior gases broaden them into hollow frameworks.
Rotating kiln techniques involve feeding precursor beads right into a revolving furnace, allowing continual, massive production with tight control over bit dimension circulation.
Post-processing steps such as sieving, air classification, and surface area treatment ensure consistent fragment size and compatibility with target matrices.
Advanced manufacturing now consists of surface functionalization with silane combining agents to improve adhesion to polymer materials, lowering interfacial slippage and improving composite mechanical residential or commercial properties.
2.2 Characterization and Efficiency Metrics
Quality control for HGMs depends on a suite of analytical strategies to confirm crucial criteria.
Laser diffraction and scanning electron microscopy (SEM) evaluate bit size circulation and morphology, while helium pycnometry gauges true bit thickness.
Crush stamina is reviewed making use of hydrostatic pressure tests or single-particle compression in nanoindentation systems.
Mass and touched density measurements notify taking care of and blending habits, essential for commercial formula.
Thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) analyze thermal security, with most HGMs staying steady as much as 600– 800 ° C, depending upon make-up.
These standardized tests make certain batch-to-batch uniformity and make it possible for trusted efficiency prediction in end-use applications.
3. Useful Residences and Multiscale Consequences
3.1 Density Decrease and Rheological Behavior
The primary feature of HGMs is to minimize the thickness of composite materials without significantly jeopardizing mechanical stability.
By replacing solid resin or steel with air-filled rounds, formulators accomplish weight savings of 20– 50% in polymer composites, adhesives, and concrete systems.
This lightweighting is vital in aerospace, marine, and auto industries, where reduced mass translates to enhanced gas efficiency and payload capability.
In liquid systems, HGMs influence rheology; their spherical form minimizes thickness contrasted to irregular fillers, enhancing flow and moldability, though high loadings can boost thixotropy as a result of particle interactions.
Proper dispersion is important to protect against pile and make sure consistent buildings throughout the matrix.
3.2 Thermal and Acoustic Insulation Properties
The entrapped air within HGMs offers excellent thermal insulation, with efficient thermal conductivity worths as low as 0.04– 0.08 W/(m · K), depending on quantity portion and matrix conductivity.
This makes them useful in protecting coatings, syntactic foams for subsea pipelines, and fire-resistant building products.
The closed-cell structure also prevents convective warmth transfer, enhancing performance over open-cell foams.
In a similar way, the insusceptibility inequality between glass and air scatters sound waves, supplying moderate acoustic damping in noise-control applications such as engine rooms and aquatic hulls.
While not as reliable as devoted acoustic foams, their dual duty as lightweight fillers and secondary dampers includes practical value.
4. Industrial and Arising Applications
4.1 Deep-Sea Design and Oil & Gas Equipments
Among one of the most requiring applications of HGMs remains in syntactic foams for deep-ocean buoyancy modules, where they are installed in epoxy or vinyl ester matrices to produce compounds that stand up to severe hydrostatic stress.
These products preserve favorable buoyancy at midsts going beyond 6,000 meters, making it possible for independent underwater cars (AUVs), subsea sensing units, and offshore exploration tools to run without heavy flotation storage tanks.
In oil well cementing, HGMs are contributed to seal slurries to lower density and protect against fracturing of weak developments, while likewise boosting thermal insulation in high-temperature wells.
Their chemical inertness makes certain long-term security in saline and acidic downhole atmospheres.
4.2 Aerospace, Automotive, and Sustainable Technologies
In aerospace, HGMs are made use of in radar domes, interior panels, and satellite components to reduce weight without compromising dimensional stability.
Automotive producers incorporate them into body panels, underbody coverings, and battery enclosures for electrical automobiles to enhance energy effectiveness and reduce emissions.
Emerging usages include 3D printing of light-weight structures, where HGM-filled materials make it possible for facility, low-mass elements for drones and robotics.
In lasting building and construction, HGMs enhance the shielding buildings of lightweight concrete and plasters, contributing to energy-efficient buildings.
Recycled HGMs from hazardous waste streams are also being checked out to enhance the sustainability of composite products.
Hollow glass microspheres exhibit the power of microstructural design to change bulk material properties.
By combining reduced thickness, thermal stability, and processability, they make it possible for innovations across marine, energy, transportation, and environmental markets.
As product scientific research developments, HGMs will continue to play a vital function in the growth of high-performance, lightweight materials for future innovations.
