1. Product Fundamentals and Structural Feature
1.1 Crystal Chemistry and Polymorphism

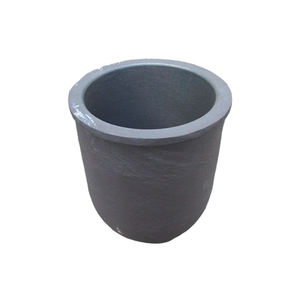

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic made up of silicon and carbon atoms arranged in a tetrahedral lattice, developing one of one of the most thermally and chemically robust products known.
It exists in over 250 polytypic types, with the 3C (cubic), 4H, and 6H hexagonal frameworks being most pertinent for high-temperature applications.
The solid Si– C bonds, with bond energy exceeding 300 kJ/mol, provide exceptional hardness, thermal conductivity, and resistance to thermal shock and chemical attack.
In crucible applications, sintered or reaction-bonded SiC is preferred as a result of its capacity to preserve architectural stability under severe thermal slopes and harsh liquified environments.
Unlike oxide porcelains, SiC does not go through turbulent stage shifts up to its sublimation factor (~ 2700 ° C), making it suitable for sustained operation over 1600 ° C.
1.2 Thermal and Mechanical Efficiency
A specifying attribute of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which promotes uniform warmth circulation and lessens thermal tension throughout quick heating or cooling.
This property contrasts dramatically with low-conductivity porcelains like alumina (≈ 30 W/(m · K)), which are vulnerable to cracking under thermal shock.
SiC likewise exhibits superb mechanical toughness at raised temperatures, maintaining over 80% of its room-temperature flexural strength (approximately 400 MPa) even at 1400 ° C.
Its reduced coefficient of thermal expansion (~ 4.0 × 10 ⁻⁶/ K) further enhances resistance to thermal shock, an essential factor in duplicated biking in between ambient and operational temperatures.
Additionally, SiC demonstrates remarkable wear and abrasion resistance, guaranteeing lengthy life span in atmospheres entailing mechanical handling or stormy thaw circulation.
2. Manufacturing Techniques and Microstructural Control
( Silicon Carbide Crucibles)
2.1 Sintering Methods and Densification Techniques
Commercial SiC crucibles are mostly made via pressureless sintering, reaction bonding, or warm pressing, each offering distinctive advantages in expense, pureness, and performance.
Pressureless sintering entails compacting fine SiC powder with sintering aids such as boron and carbon, complied with by high-temperature therapy (2000– 2200 ° C )in inert ambience to achieve near-theoretical density.
This approach yields high-purity, high-strength crucibles appropriate for semiconductor and advanced alloy handling.
Reaction-bonded SiC (RBSC) is created by infiltrating a porous carbon preform with liquified silicon, which responds to create β-SiC in situ, leading to a composite of SiC and recurring silicon.
While a little lower in thermal conductivity due to metal silicon inclusions, RBSC provides exceptional dimensional security and lower manufacturing cost, making it prominent for massive commercial usage.
Hot-pressed SiC, though much more costly, provides the highest possible density and purity, scheduled for ultra-demanding applications such as single-crystal development.
2.2 Surface Area Top Quality and Geometric Precision
Post-sintering machining, including grinding and lapping, makes certain accurate dimensional resistances and smooth internal surfaces that reduce nucleation websites and decrease contamination danger.
Surface roughness is meticulously managed to stop melt attachment and assist in easy release of strengthened products.
Crucible geometry– such as wall thickness, taper angle, and lower curvature– is maximized to stabilize thermal mass, structural strength, and compatibility with heating system heating elements.
Custom-made styles fit certain thaw quantities, heating profiles, and product reactivity, making sure optimal performance across varied commercial processes.
Advanced quality assurance, including X-ray diffraction, scanning electron microscopy, and ultrasonic screening, validates microstructural homogeneity and absence of flaws like pores or cracks.
3. Chemical Resistance and Communication with Melts
3.1 Inertness in Hostile Settings
SiC crucibles show remarkable resistance to chemical assault by molten metals, slags, and non-oxidizing salts, outmatching standard graphite and oxide ceramics.
They are steady touching molten light weight aluminum, copper, silver, and their alloys, withstanding wetting and dissolution because of low interfacial power and formation of protective surface oxides.
In silicon and germanium processing for photovoltaics and semiconductors, SiC crucibles prevent metal contamination that can weaken electronic buildings.
Nevertheless, under highly oxidizing conditions or in the visibility of alkaline fluxes, SiC can oxidize to develop silica (SiO ₂), which might respond further to form low-melting-point silicates.
Therefore, SiC is finest suited for neutral or lowering atmospheres, where its security is optimized.
3.2 Limitations and Compatibility Considerations
Despite its toughness, SiC is not globally inert; it responds with specific liquified products, specifically iron-group steels (Fe, Ni, Carbon monoxide) at high temperatures through carburization and dissolution procedures.
In liquified steel handling, SiC crucibles weaken rapidly and are therefore prevented.
In a similar way, alkali and alkaline earth metals (e.g., Li, Na, Ca) can lower SiC, releasing carbon and creating silicides, limiting their usage in battery product synthesis or responsive steel casting.
For liquified glass and porcelains, SiC is typically suitable however might present trace silicon into extremely sensitive optical or electronic glasses.
Understanding these material-specific communications is essential for selecting the suitable crucible type and making certain procedure purity and crucible long life.
4. Industrial Applications and Technological Advancement
4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors
SiC crucibles are crucial in the production of multicrystalline and monocrystalline silicon ingots for solar batteries, where they hold up against long term direct exposure to molten silicon at ~ 1420 ° C.
Their thermal security makes certain consistent formation and reduces misplacement thickness, straight affecting photovoltaic performance.
In shops, SiC crucibles are utilized for melting non-ferrous metals such as light weight aluminum and brass, using longer life span and reduced dross formation compared to clay-graphite choices.
They are likewise employed in high-temperature lab for thermogravimetric analysis, differential scanning calorimetry, and synthesis of sophisticated porcelains and intermetallic compounds.
4.2 Future Patterns and Advanced Product Integration
Arising applications consist of making use of SiC crucibles in next-generation nuclear products screening and molten salt reactors, where their resistance to radiation and molten fluorides is being reviewed.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O THREE) are being related to SiC surface areas to better enhance chemical inertness and prevent silicon diffusion in ultra-high-purity procedures.
Additive production of SiC components making use of binder jetting or stereolithography is under advancement, appealing complex geometries and fast prototyping for specialized crucible layouts.
As need grows for energy-efficient, resilient, and contamination-free high-temperature handling, silicon carbide crucibles will certainly remain a keystone modern technology in sophisticated products making.
To conclude, silicon carbide crucibles stand for a vital allowing element in high-temperature industrial and clinical procedures.
Their unequaled mix of thermal stability, mechanical stamina, and chemical resistance makes them the material of option for applications where performance and dependability are paramount.
