1. Molecular Basis and Functional Mechanism
1.1 Protein Chemistry and Surfactant Actions

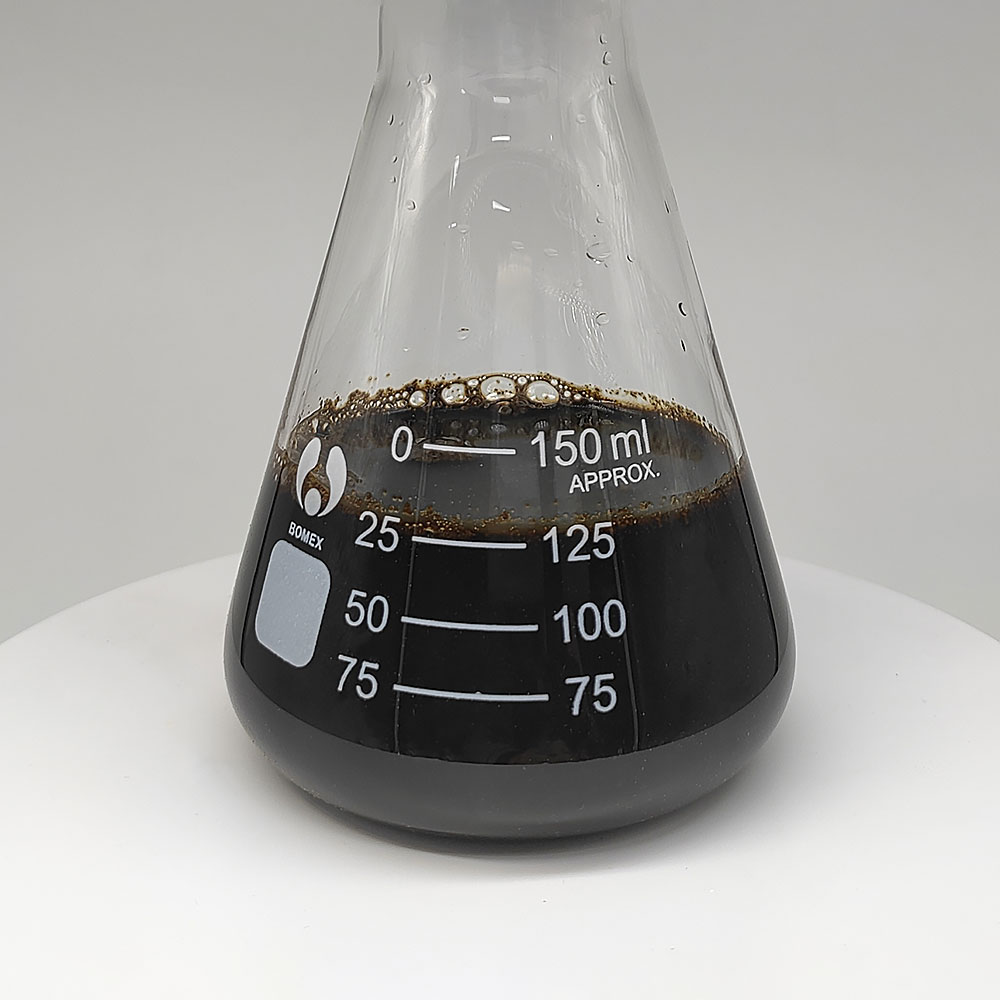

(TR–E Animal Protein Frothing Agent)
TR– E Pet Healthy Protein Frothing Agent is a specialized surfactant derived from hydrolyzed pet proteins, mainly collagen and keratin, sourced from bovine or porcine by-products refined under controlled chemical or thermal conditions.
The agent operates via the amphiphilic nature of its peptide chains, which consist of both hydrophobic amino acid residues (e.g., leucine, valine, phenylalanine) and hydrophilic moieties (e.g., lysine, aspartic acid, glutamic acid).
When introduced into a liquid cementitious system and based on mechanical agitation, these healthy protein molecules move to the air-water user interface, decreasing surface area stress and stabilizing entrained air bubbles.
The hydrophobic sections orient toward the air phase while the hydrophilic regions continue to be in the liquid matrix, creating a viscoelastic movie that stands up to coalescence and water drainage, thus prolonging foam stability.
Unlike synthetic surfactants, TR– E take advantage of a complex, polydisperse molecular framework that boosts interfacial elasticity and gives exceptional foam strength under variable pH and ionic strength conditions common of cement slurries.
This natural healthy protein design allows for multi-point adsorption at user interfaces, developing a durable network that supports fine, consistent bubble dispersion crucial for light-weight concrete applications.
1.2 Foam Generation and Microstructural Control
The effectiveness of TR– E hinges on its ability to generate a high volume of steady, micro-sized air spaces (usually 10– 200 µm in diameter) with narrow dimension circulation when incorporated into concrete, plaster, or geopolymer systems.
Throughout mixing, the frothing agent is introduced with water, and high-shear blending or air-entraining devices introduces air, which is then maintained by the adsorbed protein layer.
The resulting foam structure considerably decreases the density of the final composite, making it possible for the manufacturing of light-weight products with densities ranging from 300 to 1200 kg/m FOUR, depending upon foam quantity and matrix make-up.
( TR–E Animal Protein Frothing Agent)
Crucially, the uniformity and stability of the bubbles imparted by TR– E minimize segregation and bleeding in fresh mixtures, enhancing workability and homogeneity.
The closed-cell nature of the stabilized foam additionally boosts thermal insulation and freeze-thaw resistance in hard products, as isolated air gaps interfere with heat transfer and accommodate ice development without fracturing.
In addition, the protein-based movie shows thixotropic behavior, keeping foam integrity throughout pumping, casting, and treating without excessive collapse or coarsening.
2. Manufacturing Refine and Quality Assurance
2.1 Raw Material Sourcing and Hydrolysis
The production of TR– E begins with the choice of high-purity pet by-products, such as conceal trimmings, bones, or plumes, which undergo rigorous cleansing and defatting to remove natural contaminants and microbial tons.
These resources are then subjected to regulated hydrolysis– either acid, alkaline, or enzymatic– to break down the complex tertiary and quaternary frameworks of collagen or keratin right into soluble polypeptides while protecting functional amino acid sequences.
Enzymatic hydrolysis is chosen for its uniqueness and mild problems, reducing denaturation and maintaining the amphiphilic balance crucial for foaming efficiency.
( Foam concrete)
The hydrolysate is filteringed system to eliminate insoluble residues, focused by means of evaporation, and standardized to a consistent solids material (generally 20– 40%).
Trace steel material, especially alkali and heavy metals, is checked to guarantee compatibility with cement hydration and to prevent early setting or efflorescence.
2.2 Formulation and Performance Testing
Last TR– E formulas might consist of stabilizers (e.g., glycerol), pH barriers (e.g., salt bicarbonate), and biocides to stop microbial degradation throughout storage.
The product is generally provided as a thick liquid concentrate, needing dilution before use in foam generation systems.
Quality assurance entails standard tests such as foam growth proportion (FER), specified as the volume of foam generated each volume of concentrate, and foam stability index (FSI), gauged by the price of fluid water drainage or bubble collapse in time.
Performance is also assessed in mortar or concrete tests, assessing criteria such as fresh thickness, air material, flowability, and compressive toughness growth.
Batch uniformity is ensured through spectroscopic analysis (e.g., FTIR, UV-Vis) and electrophoretic profiling to confirm molecular honesty and reproducibility of foaming habits.
3. Applications in Building and Product Scientific Research
3.1 Lightweight Concrete and Precast Elements
TR– E is widely used in the manufacture of autoclaved oxygenated concrete (AAC), foam concrete, and lightweight precast panels, where its reliable lathering activity makes it possible for specific control over thickness and thermal residential properties.
In AAC manufacturing, TR– E-generated foam is combined with quartz sand, concrete, lime, and light weight aluminum powder, after that treated under high-pressure heavy steam, causing a cellular structure with exceptional insulation and fire resistance.
Foam concrete for flooring screeds, roofing insulation, and gap filling up gain from the simplicity of pumping and positioning enabled by TR– E’s stable foam, reducing architectural lots and material consumption.
The representative’s compatibility with numerous binders, consisting of Portland cement, blended concretes, and alkali-activated systems, widens its applicability across sustainable building and construction innovations.
Its capacity to preserve foam security during expanded positioning times is especially useful in large-scale or remote building and construction jobs.
3.2 Specialized and Emerging Utilizes
Beyond conventional building, TR– E discovers use in geotechnical applications such as light-weight backfill for bridge joints and tunnel linings, where lowered lateral planet pressure stops structural overloading.
In fireproofing sprays and intumescent finishings, the protein-stabilized foam adds to char formation and thermal insulation throughout fire exposure, boosting passive fire security.
Research study is discovering its duty in 3D-printed concrete, where controlled rheology and bubble security are essential for layer bond and shape retention.
Furthermore, TR– E is being adjusted for use in dirt stablizing and mine backfill, where lightweight, self-hardening slurries improve security and reduce ecological impact.
Its biodegradability and low toxicity compared to artificial frothing representatives make it a beneficial choice in eco-conscious construction methods.
4. Environmental and Performance Advantages
4.1 Sustainability and Life-Cycle Effect
TR– E represents a valorization path for animal handling waste, changing low-value by-products right into high-performance building and construction additives, thereby supporting circular economic situation principles.
The biodegradability of protein-based surfactants minimizes long-term ecological determination, and their reduced aquatic toxicity lessens eco-friendly threats during manufacturing and disposal.
When incorporated into structure products, TR– E contributes to energy efficiency by allowing light-weight, well-insulated structures that lower heating and cooling down needs over the building’s life cycle.
Compared to petrochemical-derived surfactants, TR– E has a lower carbon impact, especially when produced using energy-efficient hydrolysis and waste-heat healing systems.
4.2 Performance in Harsh Issues
One of the key benefits of TR– E is its security in high-alkalinity environments (pH > 12), typical of concrete pore services, where several protein-based systems would certainly denature or lose performance.
The hydrolyzed peptides in TR– E are picked or modified to stand up to alkaline deterioration, ensuring regular lathering efficiency throughout the setting and treating phases.
It likewise carries out dependably across a range of temperatures (5– 40 ° C), making it ideal for use in varied weather conditions without calling for heated storage space or ingredients.
The resulting foam concrete displays boosted durability, with decreased water absorption and enhanced resistance to freeze-thaw cycling due to optimized air space framework.
In conclusion, TR– E Animal Healthy protein Frothing Agent exhibits the assimilation of bio-based chemistry with innovative building and construction products, providing a lasting, high-performance remedy for light-weight and energy-efficient structure systems.
Its proceeded development supports the change toward greener infrastructure with decreased ecological impact and boosted practical performance.
