1. Material Properties and Structural Integrity
1.1 Inherent Qualities of Silicon Carbide

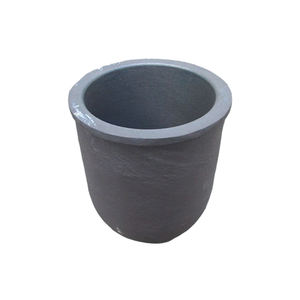

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic substance made up of silicon and carbon atoms arranged in a tetrahedral lattice structure, mostly existing in over 250 polytypic kinds, with 6H, 4H, and 3C being one of the most highly relevant.
Its solid directional bonding conveys phenomenal firmness (Mohs ~ 9.5), high thermal conductivity (80– 120 W/(m · K )for pure single crystals), and exceptional chemical inertness, making it one of one of the most durable products for severe settings.
The broad bandgap (2.9– 3.3 eV) makes sure excellent electrical insulation at space temperature and high resistance to radiation damages, while its low thermal growth coefficient (~ 4.0 × 10 ⁻⁶/ K) contributes to exceptional thermal shock resistance.
These innate residential or commercial properties are protected also at temperature levels surpassing 1600 ° C, allowing SiC to preserve architectural integrity under long term direct exposure to thaw metals, slags, and reactive gases.
Unlike oxide ceramics such as alumina, SiC does not respond easily with carbon or form low-melting eutectics in minimizing ambiences, a vital benefit in metallurgical and semiconductor handling.
When produced right into crucibles– vessels developed to include and warm products– SiC outmatches conventional materials like quartz, graphite, and alumina in both life-span and procedure integrity.
1.2 Microstructure and Mechanical Stability
The efficiency of SiC crucibles is closely connected to their microstructure, which relies on the production approach and sintering ingredients used.
Refractory-grade crucibles are typically created through response bonding, where porous carbon preforms are penetrated with molten silicon, developing β-SiC via the reaction Si(l) + C(s) → SiC(s).
This procedure yields a composite framework of key SiC with residual cost-free silicon (5– 10%), which improves thermal conductivity but may limit usage over 1414 ° C(the melting factor of silicon).
Alternatively, fully sintered SiC crucibles are made through solid-state or liquid-phase sintering using boron and carbon or alumina-yttria ingredients, achieving near-theoretical thickness and greater purity.
These exhibit remarkable creep resistance and oxidation stability however are more costly and difficult to produce in plus sizes.
( Silicon Carbide Crucibles)
The fine-grained, interlacing microstructure of sintered SiC gives exceptional resistance to thermal exhaustion and mechanical disintegration, critical when dealing with molten silicon, germanium, or III-V substances in crystal development procedures.
Grain border engineering, consisting of the control of secondary stages and porosity, plays an important duty in determining long-term durability under cyclic heating and aggressive chemical settings.
2. Thermal Efficiency and Environmental Resistance
2.1 Thermal Conductivity and Warm Circulation
Among the specifying benefits of SiC crucibles is their high thermal conductivity, which enables quick and uniform warmth transfer during high-temperature processing.
In comparison to low-conductivity products like fused silica (1– 2 W/(m · K)), SiC efficiently distributes thermal power throughout the crucible wall, minimizing localized locations and thermal slopes.
This harmony is necessary in processes such as directional solidification of multicrystalline silicon for photovoltaics, where temperature level homogeneity straight impacts crystal top quality and issue thickness.
The mix of high conductivity and low thermal growth leads to an exceptionally high thermal shock specification (R = k(1 − ν)α/ σ), making SiC crucibles resistant to cracking during fast heating or cooling cycles.
This enables faster furnace ramp prices, improved throughput, and minimized downtime as a result of crucible failing.
In addition, the product’s ability to endure duplicated thermal biking without considerable deterioration makes it ideal for set handling in industrial furnaces operating over 1500 ° C.
2.2 Oxidation and Chemical Compatibility
At elevated temperatures in air, SiC undergoes passive oxidation, forming a safety layer of amorphous silica (SiO ₂) on its surface: SiC + 3/2 O ₂ → SiO TWO + CO.
This glassy layer densifies at high temperatures, functioning as a diffusion barrier that slows down further oxidation and protects the underlying ceramic structure.
Nevertheless, in decreasing ambiences or vacuum problems– typical in semiconductor and steel refining– oxidation is reduced, and SiC continues to be chemically secure versus molten silicon, aluminum, and many slags.
It withstands dissolution and response with molten silicon as much as 1410 ° C, although long term exposure can bring about mild carbon pickup or interface roughening.
Most importantly, SiC does not present metal contaminations into sensitive melts, a key need for electronic-grade silicon production where contamination by Fe, Cu, or Cr has to be kept below ppb levels.
Nevertheless, care must be taken when processing alkaline earth steels or highly responsive oxides, as some can rust SiC at extreme temperature levels.
3. Production Processes and Quality Assurance
3.1 Construction Techniques and Dimensional Control
The manufacturing of SiC crucibles involves shaping, drying, and high-temperature sintering or infiltration, with techniques chosen based on called for pureness, dimension, and application.
Common forming techniques consist of isostatic pushing, extrusion, and slip spreading, each providing different levels of dimensional precision and microstructural uniformity.
For big crucibles made use of in solar ingot casting, isostatic pushing makes sure constant wall thickness and thickness, lowering the risk of crooked thermal development and failing.
Reaction-bonded SiC (RBSC) crucibles are economical and extensively used in factories and solar sectors, though recurring silicon restrictions maximum service temperature.
Sintered SiC (SSiC) versions, while more pricey, deal superior purity, stamina, and resistance to chemical strike, making them ideal for high-value applications like GaAs or InP crystal growth.
Accuracy machining after sintering may be needed to accomplish tight resistances, especially for crucibles made use of in vertical gradient freeze (VGF) or Czochralski (CZ) systems.
Surface area ending up is crucial to minimize nucleation websites for defects and make sure smooth thaw circulation throughout casting.
3.2 Quality Assurance and Efficiency Validation
Rigorous quality assurance is necessary to ensure dependability and longevity of SiC crucibles under demanding functional conditions.
Non-destructive assessment techniques such as ultrasonic screening and X-ray tomography are utilized to identify interior fractures, voids, or density variants.
Chemical analysis via XRF or ICP-MS validates reduced levels of metal impurities, while thermal conductivity and flexural toughness are measured to validate product uniformity.
Crucibles are frequently subjected to simulated thermal cycling tests before shipment to determine possible failure modes.
Batch traceability and qualification are typical in semiconductor and aerospace supply chains, where element failing can lead to pricey production losses.
4. Applications and Technical Impact
4.1 Semiconductor and Photovoltaic Industries
Silicon carbide crucibles play a pivotal duty in the production of high-purity silicon for both microelectronics and solar cells.
In directional solidification heating systems for multicrystalline photovoltaic or pv ingots, big SiC crucibles act as the main container for molten silicon, sustaining temperature levels over 1500 ° C for numerous cycles.
Their chemical inertness prevents contamination, while their thermal stability ensures consistent solidification fronts, leading to higher-quality wafers with fewer dislocations and grain boundaries.
Some manufacturers layer the inner surface area with silicon nitride or silica to even more lower bond and promote ingot release after cooling down.
In research-scale Czochralski development of compound semiconductors, smaller sized SiC crucibles are made use of to hold melts of GaAs, InSb, or CdTe, where very little reactivity and dimensional stability are critical.
4.2 Metallurgy, Factory, and Emerging Technologies
Past semiconductors, SiC crucibles are crucial in metal refining, alloy prep work, and laboratory-scale melting operations including aluminum, copper, and rare-earth elements.
Their resistance to thermal shock and disintegration makes them perfect for induction and resistance heaters in factories, where they outlast graphite and alumina alternatives by several cycles.
In additive manufacturing of reactive steels, SiC containers are used in vacuum induction melting to avoid crucible malfunction and contamination.
Arising applications consist of molten salt reactors and concentrated solar energy systems, where SiC vessels might consist of high-temperature salts or fluid metals for thermal energy storage.
With continuous advancements in sintering innovation and finish engineering, SiC crucibles are poised to sustain next-generation products processing, making it possible for cleaner, a lot more effective, and scalable commercial thermal systems.
In recap, silicon carbide crucibles represent a vital allowing modern technology in high-temperature product synthesis, integrating phenomenal thermal, mechanical, and chemical performance in a single crafted part.
Their prevalent adoption throughout semiconductor, solar, and metallurgical sectors emphasizes their role as a foundation of modern commercial porcelains.
