1. Basics of Foam Generation and the Duty in Lightweight Concrete Systems
1.1 Principles of Air Entrainment and Mobile Framework Development

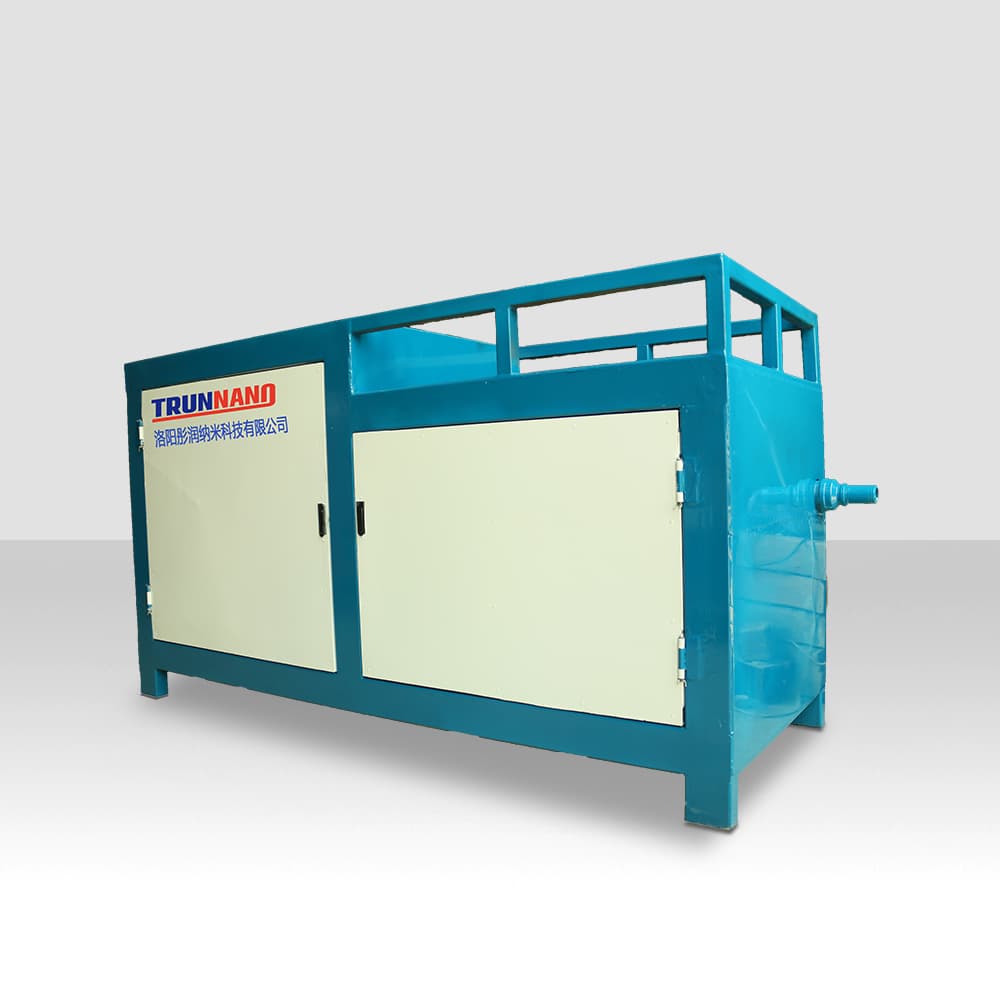

(Lightweight Concrete Foam Generators)
Light-weight concrete, a course of building products characterized by decreased thickness and enhanced thermal insulation, depends basically on the regulated introduction of air or gas voids within a cementitious matrix– a process known as foaming.
The creation of these uniformly dispersed, stable air cells is achieved through making use of a specialized gadget called a foam generator, which generates fine, microscale bubbles that are consequently blended right into the concrete slurry.
These bubbles, commonly varying from 50 to 500 micrometers in diameter, end up being completely entrained upon cement hydration, resulting in a cellular concrete structure with considerably reduced device weight– frequently in between 300 kg/m four and 1,800 kg/m ³– contrasted to conventional concrete (~ 2,400 kg/m SIX).
The foam generator is not merely an auxiliary device yet a crucial engineering element that determines the top quality, uniformity, and performance of the last lightweight concrete item.
The procedure starts with a liquid lathering representative, typically a protein-based or artificial surfactant remedy, which is introduced right into the generator where it is mechanically or pneumatically dispersed right into a thick foam with high shear or pressed air injection.
The stability and bubble dimension distribution of the created foam straight influence crucial product buildings such as compressive toughness, thermal conductivity, and workability.
1.2 Category and Operational Mechanisms of Foam Generators
Foam generators are extensively classified right into 3 main kinds based on their functional principles: low-pressure (or wet-film), high-pressure (or vibrant), and rotary (or centrifugal) systems.
Low-pressure generators make use of a porous medium– such as a fine mesh, fabric, or ceramic plate– where pressed air is forced, producing bubbles as the foaming remedy flows over the surface.
This technique creates fairly big, less uniform bubbles and is normally utilized for lower-grade applications where accurate control is less vital.
High-pressure systems, in contrast, use a nozzle-based style where a high-velocity stream of compressed air shears the lathering fluid into a penalty, homogeneous foam with narrow bubble size circulation.
These systems offer superior control over foam density and security, making them perfect for structural-grade lightweight concrete and precast applications.
( Lightweight Concrete Foam Generators)
Rotating foam generators utilize a spinning disk or drum that flings the lathering remedy right into a stream of air, developing bubbles through mechanical diffusion.
While much less accurate than high-pressure systems, rotary generators are valued for their robustness, ease of maintenance, and continual output, appropriate for large-scale on-site pouring procedures.
The selection of foam generator kind depends upon project-specific demands, including preferred concrete density, manufacturing quantity, and performance requirements.
2. Product Science Behind Foam Security and Concrete Efficiency
2.1 Foaming Agents and Interfacial Chemistry
The performance of a foam generator is inherently linked to the chemical composition and physical behavior of the foaming agent.
Frothing representatives are surfactants that minimize the surface stress of water, allowing the development of steady air-liquid interfaces.
Protein-based agents, originated from hydrolyzed keratin or albumin, create sturdy, flexible foam films with exceptional stability and are frequently liked in architectural applications.
Artificial representatives, such as alkyl sulfonates or ethoxylated alcohols, offer faster foam generation and lower cost however might generate much less secure bubbles under long term mixing or negative ecological conditions.
The molecular framework of the surfactant establishes the density and mechanical strength of the lamellae (slim liquid films) surrounding each bubble, which must stand up to coalescence and drain during mixing and treating.
Ingredients such as thickness modifiers, stabilizers, and pH buffers are typically integrated into lathering services to enhance foam determination and compatibility with concrete chemistry.
2.2 Impact of Foam Characteristics on Concrete Quality
The physical features of the generated foam– bubble size, dimension circulation, air content, and foam thickness– directly dictate the macroscopic habits of lightweight concrete.
Smaller, consistently dispersed bubbles enhance mechanical strength by decreasing stress concentration points and creating an extra homogeneous microstructure.
Conversely, bigger or irregular bubbles can work as problems, lowering compressive toughness and enhancing leaks in the structure.
Foam stability is equally vital; premature collapse or coalescence throughout mixing cause non-uniform density, segregation, and decreased insulation efficiency.
The air-void system also affects thermal conductivity, with finer, closed-cell frameworks providing exceptional insulation as a result of trapped air’s reduced thermal diffusivity.
In addition, the water web content of the foam affects the water-cement proportion of the final mix, demanding specific calibration to avoid deteriorating the cement matrix or postponing hydration.
Advanced foam generators now incorporate real-time surveillance and feedback systems to preserve regular foam output, making sure reproducibility across batches.
3. Assimilation in Modern Building and Industrial Applications
3.1 Architectural and Non-Structural Uses of Foamed Concrete
Light-weight concrete generated using foam generators is used throughout a wide range of building applications, ranging from insulation panels and void filling to load-bearing walls and pavement systems.
In building envelopes, frothed concrete gives exceptional thermal and acoustic insulation, contributing to energy-efficient layouts and minimized HVAC lots.
Its low thickness additionally decreases structural dead lots, permitting smaller structures and longer spans in skyscraper and bridge building and construction.
In civil engineering, it is used for trench backfilling, tunneling, and slope stabilization, where its self-leveling and low-stress features avoid ground disturbance and enhance security.
Precast makers use high-precision foam generators to create lightweight blocks, panels, and building aspects with limited dimensional tolerances and constant high quality.
Moreover, foamed concrete shows intrinsic fire resistance because of its reduced thermal conductivity and absence of natural elements, making it ideal for fire-rated settings up and easy fire security systems.
3.2 Automation, Scalability, and On-Site Production Solutions
Modern building and construction needs quick, scalable, and dependable manufacturing of lightweight concrete, driving the combination of foam generators into automatic batching and pumping systems.
Totally automated plants can synchronize foam generation with concrete blending, water dosing, and additive injection, allowing continuous production with minimal human treatment.
Mobile foam generator units are progressively deployed on building and construction sites, enabling on-demand construction of foamed concrete straight at the point of use, minimizing transport prices and material waste.
These systems are frequently outfitted with electronic controls, remote surveillance, and data logging capacities to make certain conformity with engineering specifications and high quality standards.
The scalability of foam generation technology– from little mobile devices to industrial-scale systems– supports its adoption in both developed and emerging markets, promoting lasting building techniques internationally.
4. Technical Advancements and Future Instructions in Foam Generation
4.1 Smart Foam Generators and Real-Time Refine Control
Emerging innovations in foam generator design concentrate on improving accuracy, efficiency, and adaptability with digitalization and sensor assimilation.
Smart foam generators equipped with stress sensing units, circulation meters, and optical bubble analyzers can dynamically adjust air-to-liquid proportions and monitor foam high quality in genuine time.
Machine learning formulas are being checked out to forecast foam habits based upon ecological conditions, basic material variations, and historic performance information.
Such innovations intend to reduce batch-to-batch variability and optimize product performance, particularly in high-stakes applications like nuclear securing or offshore building.
4.2 Sustainability, Environmental Influence, and Environment-friendly Material Assimilation
As the building and construction market moves toward decarbonization, foam generators play a role in minimizing the environmental impact of concrete.
By lowering material thickness, much less concrete is called for per unit volume, straight reducing carbon monoxide two discharges connected with cement manufacturing.
Moreover, foamed concrete can incorporate extra cementitious materials (SCMs) such as fly ash, slag, or silica fume, enhancing sustainability without compromising performance.
Research study is likewise underway to establish bio-based foaming representatives originated from sustainable resources, decreasing reliance on petrochemical surfactants.
Future developments might consist of energy-efficient foam generation methods, integration with carbon capture technologies, and recyclable concrete formulas allowed by steady cellular structures.
Finally, the lightweight concrete foam generator is far more than a mechanical gadget– it is a crucial enabler of advanced material design in modern construction.
By exactly managing the design of air voids at the microscale, it transforms conventional concrete right into a multifunctional, lasting, and high-performance material.
As innovation evolves, foam generators will continue to drive advancement in building science, infrastructure durability, and environmental stewardship.
